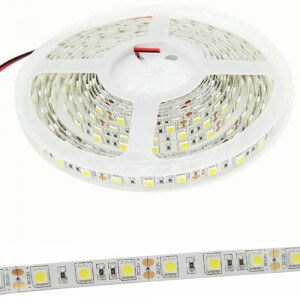

Top Bright Strip 5050 60LED – CE ROHS 3years
Short Description:
| *5050 3-in-1 led can produce all colors:white/red/green/blue/yellow |
| *With 3M back adhsive, can stick to any smooth surface |
| *5cm per unit, can be cut to any length as you want |
| *With end wires or plug, can be connect with each others |
| *Work on 12V DC, Safe, easy and reliable |
Product Detail
Product Tags
| Item | DC12V SMD5050 Flexible LED Strips 60LEDs 14.4W Per Meter |
| Code | MSS-F300-5050X |
| LED Type | SMD5050 |
| LED QTY. | 60LED/Meter |
| Input Voltage | 12V DC |
| Wattage (max) | 14.4W/Meter |
| Cuttable | 3LED per 2inch |
| Size(W*H/mm) | 10*2mm |
| Weight | 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68. |
| Lumen Output | 700LM/Mtr @Warm White,760LM/Mtr @NaturalWhite, 800LM/Mtr @Pure White |
| Light Color | Cold White(8000-10000K), Pure White(5500-6500K), Warm White(2700-3500K), Natural White(4000-4500K), Red(620-625nm), Green(525-530nm),Yellow(588-592nm), Blue(465-470nm) |
| CCT | 2700K-10000K |
| PCB color option | Yellow, White, Black |
| PCB Backing | Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68 |
| Beam Angle | 120° |
| Dimming | YES |
| Waterproof Type | Non-waterproof(indoor use), Waterproof IP65, IP67, IP68 |
| Pre-wiring | 15cm Red/Black Lead wire at one end of the strip |
| Packing | 5meter per roll packed in a static bag |
Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)
Available LED Colors
Product features
Available PCB Colors
Available Waterproof or non-waterproof
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it’s solid.IP68 grade can be used under water 1mtr.
Options for Accessories
-Solderless connectors
-Male and female plugs (2pins for single color, 4pins for RGB color changing)
-Lock-in plug(2pins for single color, 4pins for RGB color changing)
-AC to DC Transformer
How to cut and mount the strip
Installation Guide
-Direct Powered by Transformer no controller
-With controller or dimmer
RGB color strip need to work with RGB controller, to realize RGB color changing
Single color strips produce one static color, whereas RGB strips are capable of producing a wide range of colors, and when connected to an RGB controller, allow you to select options such as the static color, brightness or the color changing operating modes. All of these options will allow a huge degree of control over what and how your LED’s display their colors. Single color LED strips however, can be connected to an LED Dimmer Switch which will give you control over their output. For controller/dimmer used, sometimes Amplifier as an accessory will be used to enlarge signal transoformation if the strips load exceed the rated of a controller/dimmer.
Below is conntection drawing for RGB strip and 4keys/6keys controller:
-connect 1 or 2rolls strips:
-connect more than 2rolls RGB strip by amplifier:
