Short Description:



*5050 3-in-1 led can produce all colors:white/red/green/blue/yellow
*With 3M back adhsive, can stick to any smooth surface
*5cm per unit, can be cut to any length as you want
*With end wires or plug, can be connect with each others
*Work on 12V DC, Safe, easy and reliable

  • FOB Price: US $0.5 - 10 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 100,000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Item DC12V SMD5050 Flexible LED Strips 30LEDs 7.2W Per Meter
    Code MSS-F150-5050X
    LED Type SMD5050
    LED QTY. 30LED/Meter
    Input Voltage 12V DC
    Wattage (max) 7.2W/Meter
    Cuttable 3LED per 4inch
    Size(W*H/mm) 10*2mm
    Weight 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68.
    Lumen Output 360LM/Mtr Warm White,390LM/Mtr NaturalWhite, 420LM/Mtr Pure White
    Light Color Cold White(8000-10000K),  Pure White(5500-6500K), Warm White(2700-3500K),
      Natural White(4000-4500K),  Red(620-625nm), Green(525-530nm),Yellow(588-592nm), Blue(465-470nm), Multicolor RGB 3-in-1
    CCT 2700K-10000K
    PCB color option Yellow, White, Black
    PCB Backing Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68
    Beam Angle 120°
    Dimming YES
    Waterproof Type Non-waterproof(indoor use), Waterproof IP65, IP67, IP68
    Pre-wiring 15cm Red/Black Lead wire at one end of the strip
    Packing 5meter per roll packed in a static bag

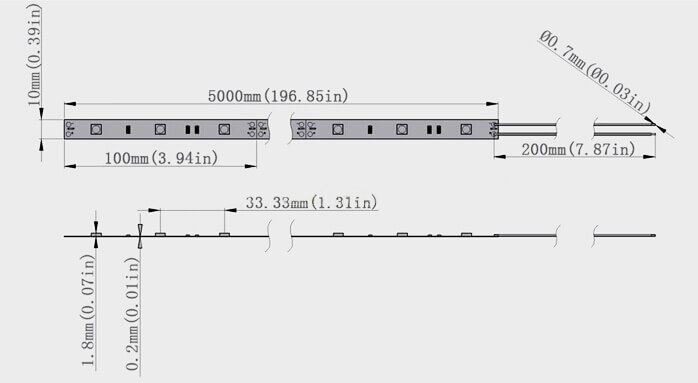

    Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)

    5050 30led



    Available LED Colors



    QQ截图20170830133105

    Product features



    QQ截图20170830142753



    Available  PCB Colors



    PCB COLOR



    Available Waterproof or non-waterproof



      STRIP IP

    5050 30led pcb



    *Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use

    *Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.

    *Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.

    *Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it’s solid.IP68 grade can be used under water 1mtr.



    Options for Accessories

    -Solderless connectors



    QQ截图20170830151155

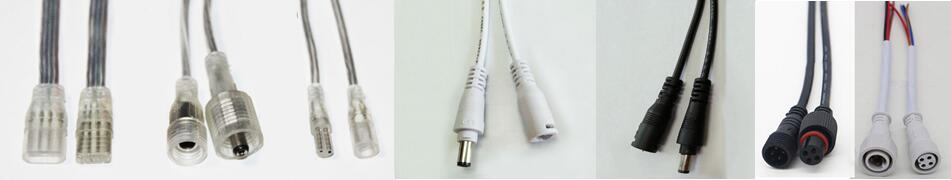

    -Male and female plugs (2pins for single color, 4pins for RGB color changing)



    QQ截图20170901161546

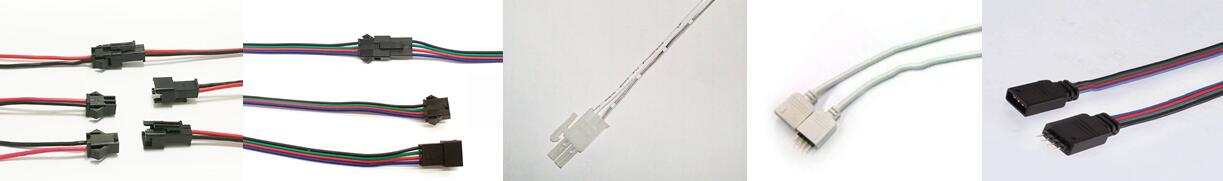

    -Lock-in plug(2pins for single color, 4pins for RGB color changing)



    QQ截图20170901161640



    -AC to DC Transformer



    QQ截图20170830152538



    How to cut and mount the strip

    cut and mount strip



    Installation Guide

    -Direct Powered by Transformer no controller



    install





    one power and several powers



    -With controller or dimmer



    install 2

    joint more controllers



    RGB color strip need to work with RGB controller, to realize RGB color changing

    rgb colors

    Single color strips produce one static color, whereas RGB strips are capable of producing a wide range of colors, and when connected to an RGB controller, allow you to select options such as the static color, brightness or the color changing operating modes. All of these options will allow a huge degree of control over what and how your LED’s display their colors. Single color LED strips however, can be connected to an LED Dimmer Switch which will give you control over their output. For controller/dimmer used, sometimes Amplifier as an accessory will be used to enlarge signal transoformation if the strips load exceed the rated of a controller/dimmer.

    Below is conntection drawing for RGB strip and 4keys/6keys controller:

    -connect 1 or 2rolls strips:

    controller connection

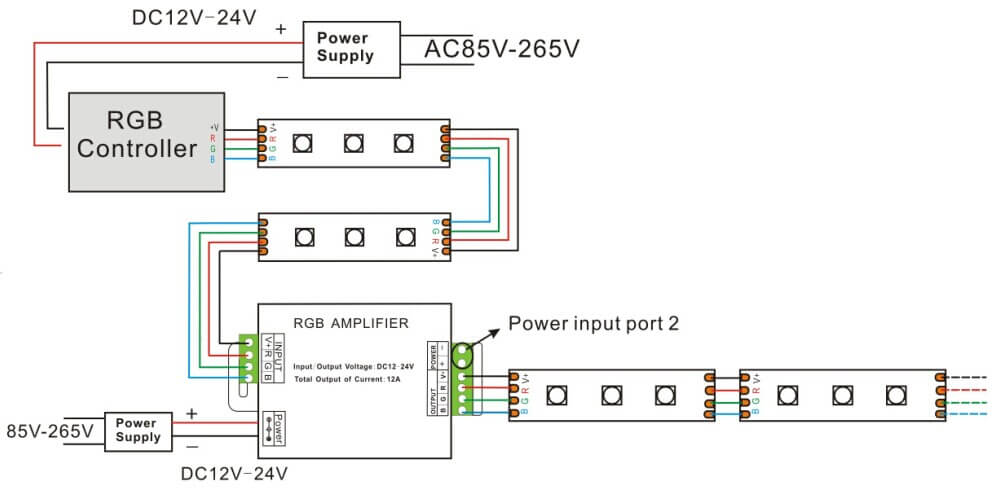

    -connect more than 2rolls RGB strip by amplifier:

    amplifier drawing
