3528 LED Strip 60/M – CE ROHS 3years

3528 LED Strip 60/M – CE ROHS 3years

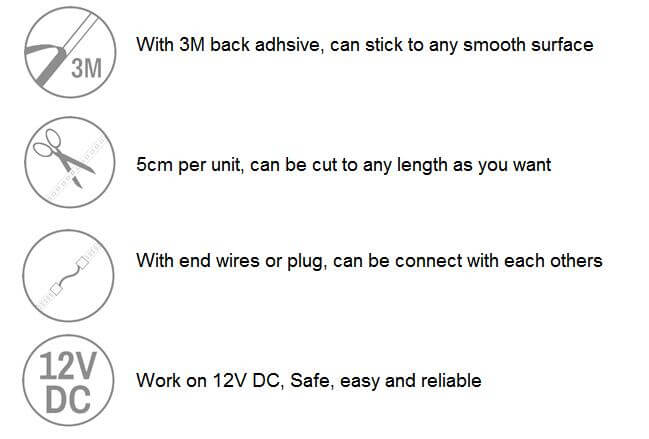

Short Description:


*With 3M back adhsive, can stick to any smooth surface
*5cm per unit, can be cut to any length as you want
*With end wires or plug, can be connect with each others
*Work on 12V DC, Safe, easy and reliable

  • FOB Price: US $0.5 - 10 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 100,000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

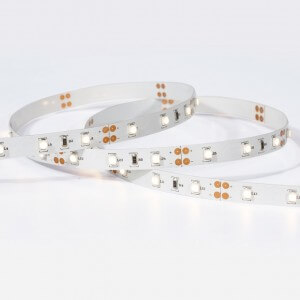

    Item 60leds 3528 Flex LED Strip,12VDC SMD3528 LED flexible strip,
    Code MSS-F300-3528X
    LED Type single color SMD3528
    LED QTY. 60LED/Meter
    Input Voltage 12V DC
    Wattage (max) 4.8Watt/Meter
    Cuttable Every 3LED per 2” can be cut
    Size(W*H/mm) 8*2mm
    Weight 0.15kgs per 5meter per roll
    Lumen Output 300LM/Mtr @Warm White,360LM/Mtr @NaturalWhite, 420LM/Mtr @Pure White
    Light Color Cold White(8000-10000K),  Pure White(5500-6500K), Warm White(2700-3500K), Natural White(4000-4500K),  Red(620-625nm), Green(525-530nm),Yellow(588-592nm), Blue(465-470nm)
    CCT 2700K-10000K
    PCB color option Yellow, White, Black
    PCB Backing Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68
    Beam Angle 120°
    Dimming PWM dimmable
    Waterproof Type Non-waterproof(indoor use), Waterproof IP65, IP67, IP68
    Pre-wiring 15cm Red/Black Lead wire at one end of the strip
    Packing 5meter per roll packed in a static bag

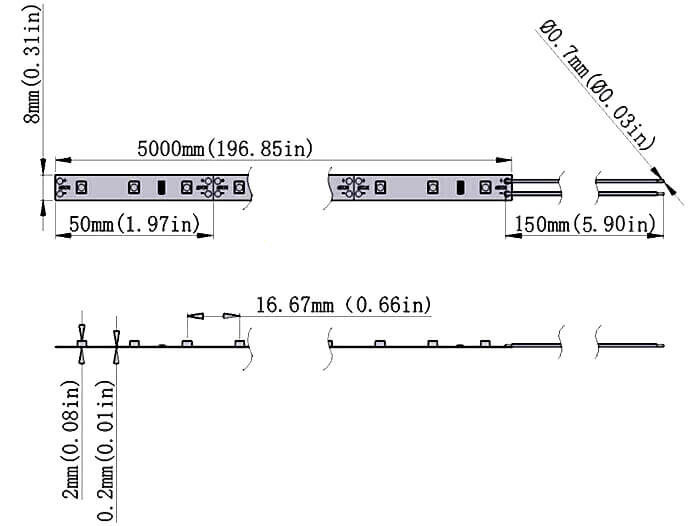

    Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)



    Available LED Colors



    Product features

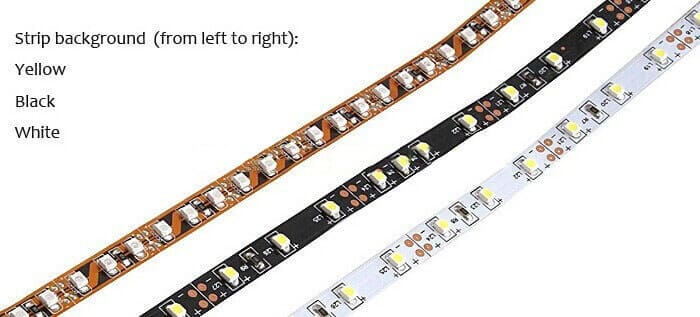

    Available  PCB Colors




    Available Waterproof or non-waterproof

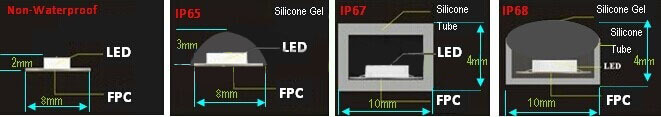

      STRIP IP

    IP 65 67 68


    *Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use

    *Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.

    *Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.

    *Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it’s solid.IP68 grade can be used under water 1mtr.


    Available Color rendering index

    Ra 70 80 90

    *Ra 70 led strips for decoration lighting or signage lighting

    *Ra 80 & Ra 90 led strips we suggest for commercial lighting location

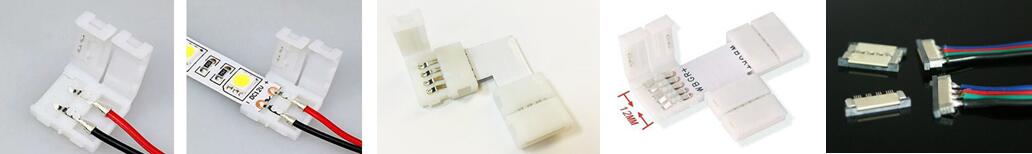

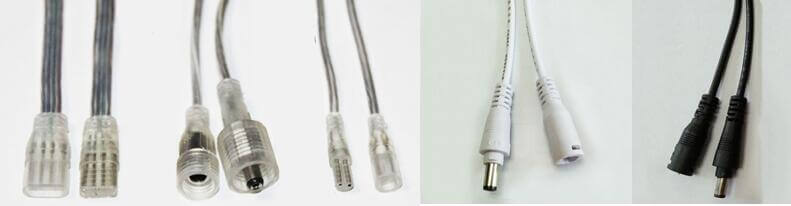

    Options for Accessories

    -Solderless connectors




    -Male and female plugs




    -Lock-in plug

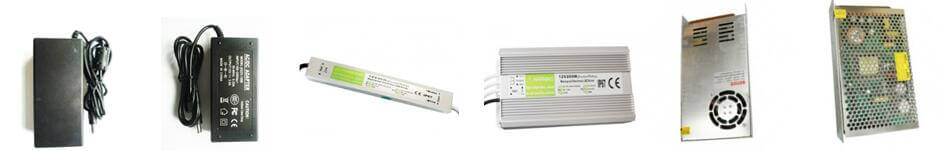

    -AC to DC Transformer




    How to cut and mount the strip

    cut and mount strip


    Installation Guide

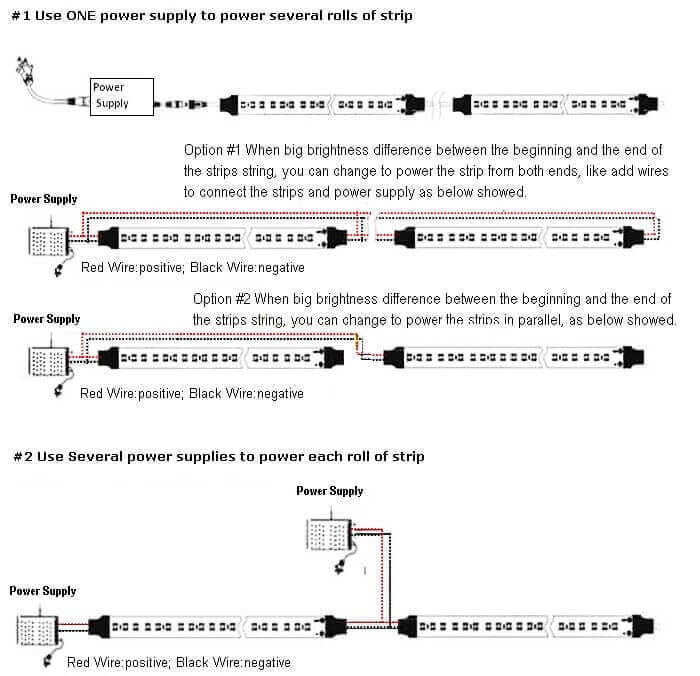

    -Direct Powered by Transformer no controller





    one power and several powers

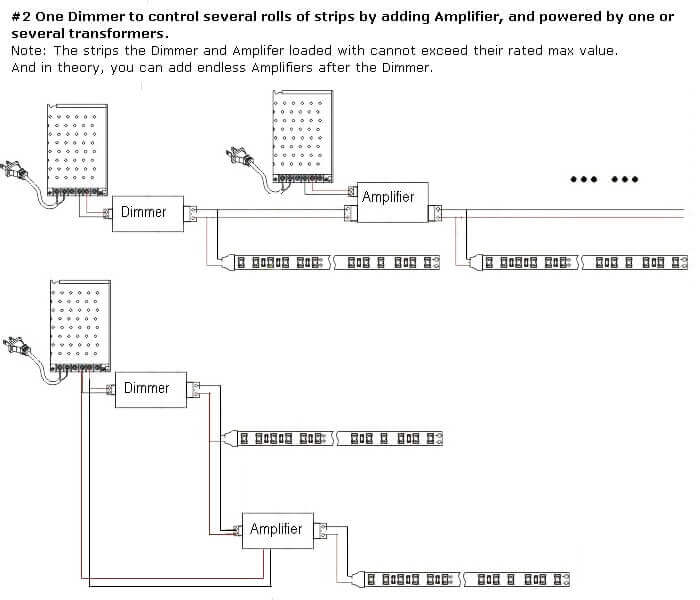

    -With controller or dimmer


    install 2

    joint more controllers
