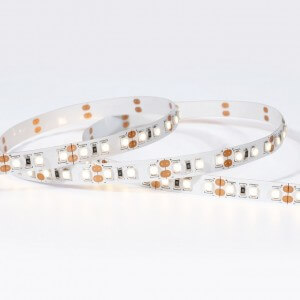

Flex LED Strip 3528 120/M – CE ROHS 3years

Flex LED Strip 3528 120/M  – CE ROHS 3years

Short Description:



*With 3M back adhsive, can stick to any smooth surface
*5cm per unit, can be cut to any length as you want
*With end wires or plug, can be connect with each others
*Work on 12V DC, Safe, easy and reliable

  • FOB Price: US $0.5 - 10 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 100,000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Item 120leds 3528 Flex LED Strip,12VDC SMD3528 LED flexible strip,
    Code MSS-F600-3528X
    LED Type single color SMD3528
    LED QTY. 120LED/Meter
    Input Voltage 12V DC
    Wattage (max) 10.0Watt/Meter
    Cuttable Every 3LED per 2” can be cut
    Size(W*H/mm) 10*2mm
    Weight 0.20kgs per 5meter per roll
    Lumen Output 500LM/Mtr @Warm White,600LM/Mtr @NaturalWhite, 700LM/Mtr @Pure White
    Light Color Cold White(8000-10000K),  Pure White(5500-6500K), Warm White(2700-3500K), Natural White(4000-4500K),  Red(620-625nm), Green(525-530nm),Yellow(588-592nm), Blue(465-470nm)
    CCT 2700K-10000K
    PCB color option Yellow, White, Black
    PCB Backing Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68
    Beam Angle 120°
    Dimming PWM dimmable
    Waterproof Type Non-waterproof(indoor use), Waterproof IP65, IP67, IP68
    Pre-wiring 15cm Red/Black Lead wire at one end of the strip
    Packing 5meter per roll packed in a static bag

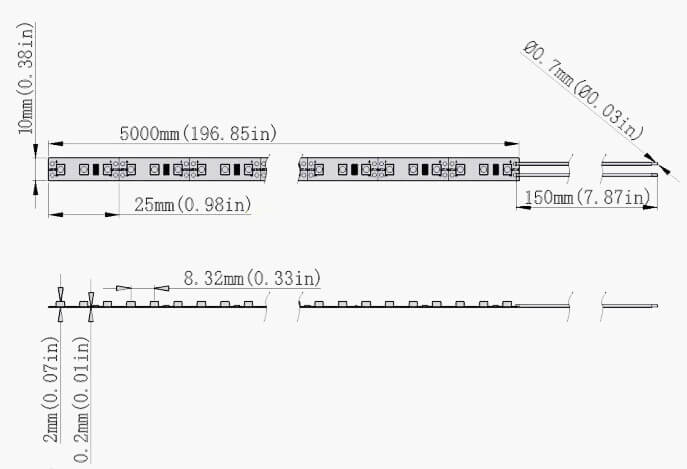

    Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)

    3825 120led

    Available LED Colors

    QQ截图20170830133105

    Product features

    QQ截图20170830142753



    Available  PCB Colors   PCB COLOR



    Available Waterproof or non-waterproof     STRIP IP

    10mm IP 65 67 68

    *Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use

    *Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.

    *Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.

    *Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it’s solid.IP68 grade can be used under water 1mtr.



    Available Color rendering index Ra 70 80 90

    *Ra 70 led strips for decoration lighting or signage lighting

    *Ra 80 & Ra 90 led strips we suggest for commercial lighting location



    Options for Accessories

    -Solderless connectors

    QQ截图20170830151155

    -Male and female plugs

    QQ截图20170830151542   -Lock-in plug

    QQ截图20170830151713

    -AC to DC Transformer   QQ截图20170830152538   How to cut and mount the strip cut and mount strip

    Installation Guide

    -Direct Powered by Transformer no controller

    install     one power and several powers

    -With controller or dimmer





    install 2 joint more controllers
