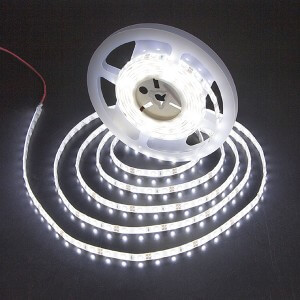

Ultra Bright 2835 LED Strip – CE RoHS 3years

Ultra Bright 2835 LED Strip – CE RoHS 3years

Short Description:

*Reliable Quality: High-End 10*20mil Big Chip & CRI 80-85
*Ultra Bright LED: Save 85% Energy & Last Up To 10 Years Longer
*Easy Install By 3M Adhsive,Cut By Each 5cm,Work On 12V DC Safely
*Customized Length: For All Your LED Project Needs

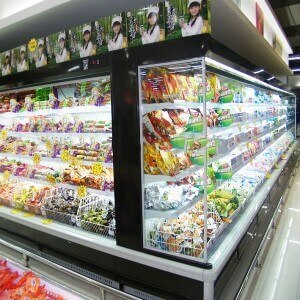

*Main User: Sign Companies, Cabinet & Kitchen Manufacturers
*Factory Direct Sales Price, Saving 50% Cost
*Quick Delivery: 7-10days From Shenzhen Manufacturer

  • FOB Price: US $0.5 - 10 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 100,000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

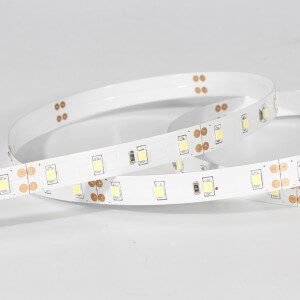

    Item 60leds 2835 Flex LED Strip,12VDC SMD2835 LED flexible strip,
    Code MSS-F300-2835X
    LED Type single color SMD2835
    LED QTY. 60LED/Meter
    Input Voltage 12V DC or 24V DC
    Wattage (max) 12.0Watt/Meter
    Cuttable Every 3LED per 2” can be cut
    Size(W*H/mm) 10*2mm
    Weight 0.15kgs per 5meter per roll
    Lumen Output 700LM/Mtr @Warm White,850LM/Mtr @NaturalWhite, 1000LM/Mtr @Pure White
    Light Color Cold White(8000-10000K),  Pure White(5500-6500K), Warm White(2700-3500K), Natural White(4000-4500K),  Red(620-625nm), Green(525-530nm),Yellow(588-592nm), Blue(465-470nm)
    CCT 2700K-10000K
    PCB color option Yellow, White, Black
    PCB Backing Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68
    Beam Angle 120°
    Dimming PWM dimmable
    Waterproof Type Non-waterproof(indoor use), Waterproof IP65, IP67, IP68
    Pre-wiring 15cm Red/Black Lead wire at one end of the strip
    Packing 5meter per roll packed in a static bag

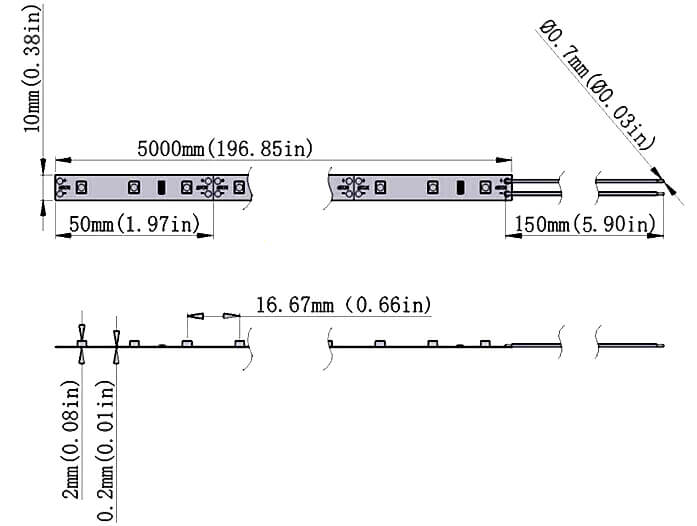

    Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)

    2835 60LED

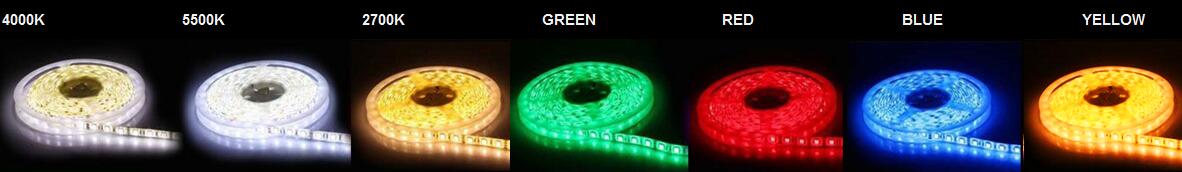

    Available LED Colors



    QQ截图20170830133105

    Product features



    QQ截图20170830142753



    Available  PCB Colors



    PCB COLOR

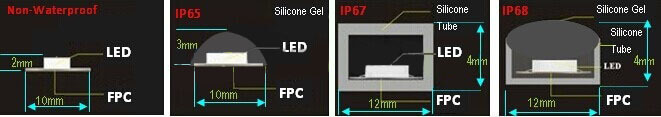

    Available Waterproof or non-waterproof



      STRIP IP

    10mm IP 65 67 68



    *Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use

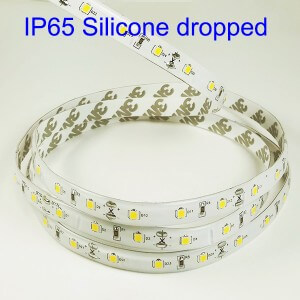

    *Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.

    *Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.

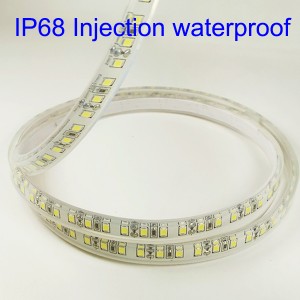

    *Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it’s solid.IP68 grade can be used under water 1mtr.



    Available Color rendering index

    Ra 70 80 90

    *Ra 70 led strips for decoration lighting or signage lighting

    *Ra 80 & Ra 90 led strips we suggest for commercial lighting location



    Options for Accessories

    -Solderless connectors



    QQ截图20170830151155



    -Male and female plugs



    QQ截图20170830151542



    -Lock-in plug



    QQ截图20170830151713



    -AC to DC Transformer



    QQ截图20170830152538



    How to cut and mount the strip

    cut and mount strip



    Installation Guide

    -Direct Powered by Transformer no controller



    install





    one power and several powers



    -With controller or dimmer



    install 2

    joint more controllers
