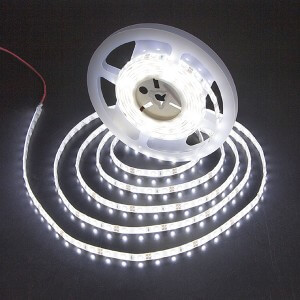

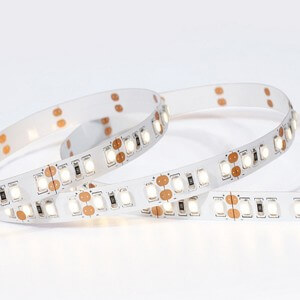

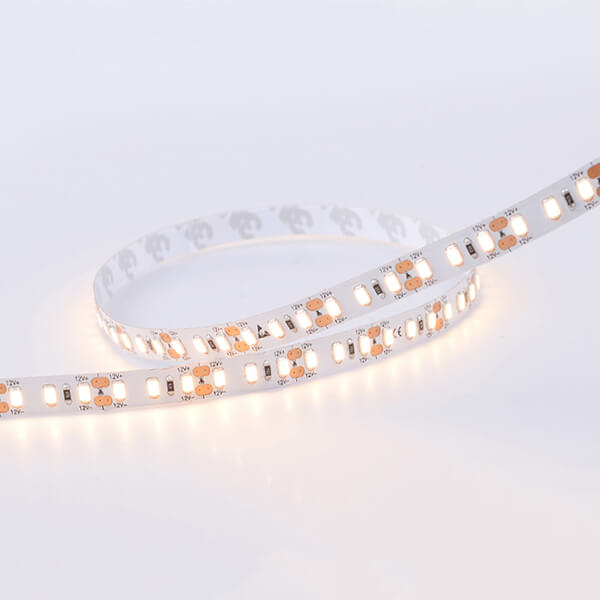

CRI90 LED Strip 2835 – CE ROHS 3years
Short Description:
| *High Efficiency and luminous, alternative CRI 70 80 90 |
| *With 3M back adhsive, can stick to any smooth surface |
| *5cm per unit, can be cut to any length as you want |
| *With end wires or plug, can be connect with each others |
| *Work on 12V DC, Safe, easy and reliable |
Product Detail
Product Tags
| Item | 120leds 2835 Flex LED Strip,12VDC SMD2835 LED flexible strip, |
| Code | MSS-F600-2835X |
| LED Type | single color SMD2835 |
| LED QTY. | 120LED/Meter |
| Input Voltage | 12V DC or 24V DC |
| Wattage (max) | 9.6Watt/Meter |
| Cuttable | Every 3LED per 2” can be cut |
| Size(W*H/mm) | 10*2mm |
| Weight | 0.20kgs per 5meter per roll |
| Lumen Output | 550LM/Mtr @Warm White,650LM/Mtr @NaturalWhite, 720LM/Mtr @Pure White |
| Light Color | Cold White(8000-10000K), Pure White(5500-6500K), Warm White(2700-3500K), Natural White(4000-4500K), Red(620-625nm), Green(525-530nm),Yellow(588-592nm), Blue(465-470nm) |
| CCT | 2700K-10000K |
| PCB color option | Yellow, White, Black |
| PCB Backing | Double-sided Adhesive backing, extra rubber mounting clip for IP67 and IP68 |
| Beam Angle | 120° |
| Dimming | PWM dimmable |
| Waterproof Type | Non-waterproof(indoor use), Waterproof IP65, IP67, IP68 |
| Pre-wiring | 15cm Red/Black Lead wire at one end of the strip |
| Packing | 5meter per roll packed in a static bag |
Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)
Available LED Colors
Product features
Available PCB Colors
Available Waterproof or non-waterproof
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.

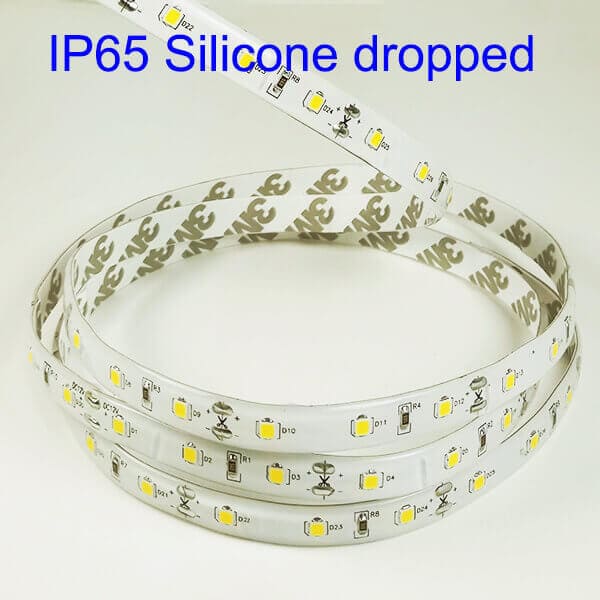

*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.

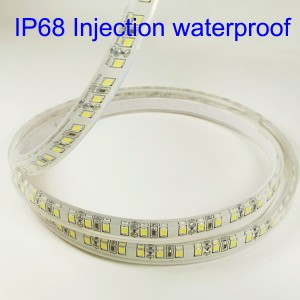

*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it’s solid.IP68 grade can be used under water 1mtr.
Available Color rendering index
*Ra 70 led strips for decoration lighting or signage lighting
*Ra 80 & Ra 90 led strips we suggest for commercial lighting location
Options for Accessories
-Solderless connectors
-Male and female plugs
-Lock-in plug
-AC to DC Transformer
How to cut and mount the strip
Installation Guide
-Direct Powered by Transformer no controller
-With controller or dimmer
