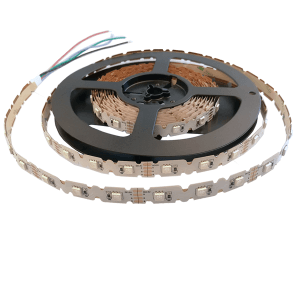

S-shape RGB Strip – CE ROHS 3years

S-shape RGB Strip – CE ROHS 3years

Short Description:

Unique S-shape Design: Flexible 360° bend angle to fit any corner
Cuttable and Linkable: Cut every 3 LEDs per 2inch(5cm)
Safe to use: DC 12V touchable and safe to children.
Reduce re-lamp frequency: Lifespan 50000 hrs,Save maintenance costs
Easy Installation: 12mm wide white PCB background with adhsive
Wide application: Specially for irregular shape installation.

  • FOB Price: US $0.5 - 10 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 100,000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Item S-shape Led Strip,RGB 60led/mtr DC 12V 14.4Watt
    Code SF60-5050X
    LED Type SMD5050 16lm
    LED QTY. 60pcs/mtr
    Input Voltage DC 12V
    Wattage (max) 14.4Watt/mtr
    Cuttable 3LED per 2inch
    Size(W*H/mm) 12*2mm
    Weight 0.16kgs/roll IP33; 0.26kgs/roll IP67;
    Lumen Output 760-950LM
    Light Color RGB 3-IN-1,White,Warm white,Red,Green,Blue,Yellow
    PCB color option Yellow, White, Black
    PCB Backing Double-sided Adhesive backing, extra rubber mounting clip for IP67
    Bendable Angle 360°
    Dimming YES
    Waterproof Type Non-waterproof(indoor use), Waterproof IP67
    Pre-wiring 15cm Red/Black Lead wire at one end of the strip
    Packing 5meter per roll packed in a static bag

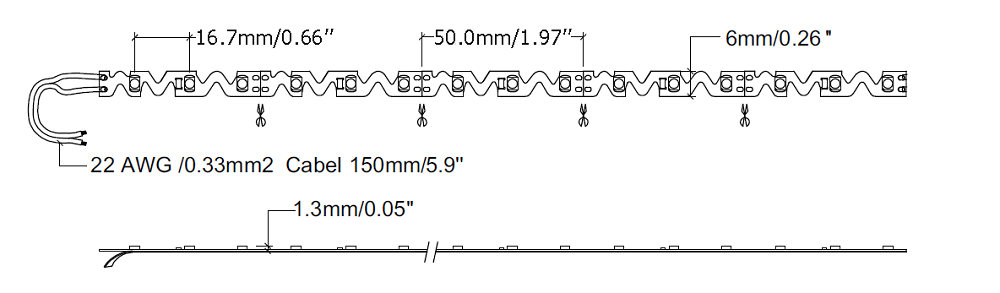

    Drawing per 5000mm for non-waterproof strip (1inch=25.4mm)

    s shape led strip 08



    Available LED Colors



    QQ截图20170830133105

    Product features

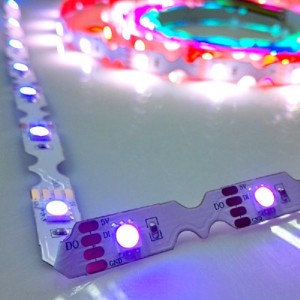

    LED strip with a unique S shaped PCB allowing it to be manipulated around bends and corners. This bendable LED strip operates from a 12vdc input and is available in 3 versions, each offering a different type of white light .

    s shape led strip 04

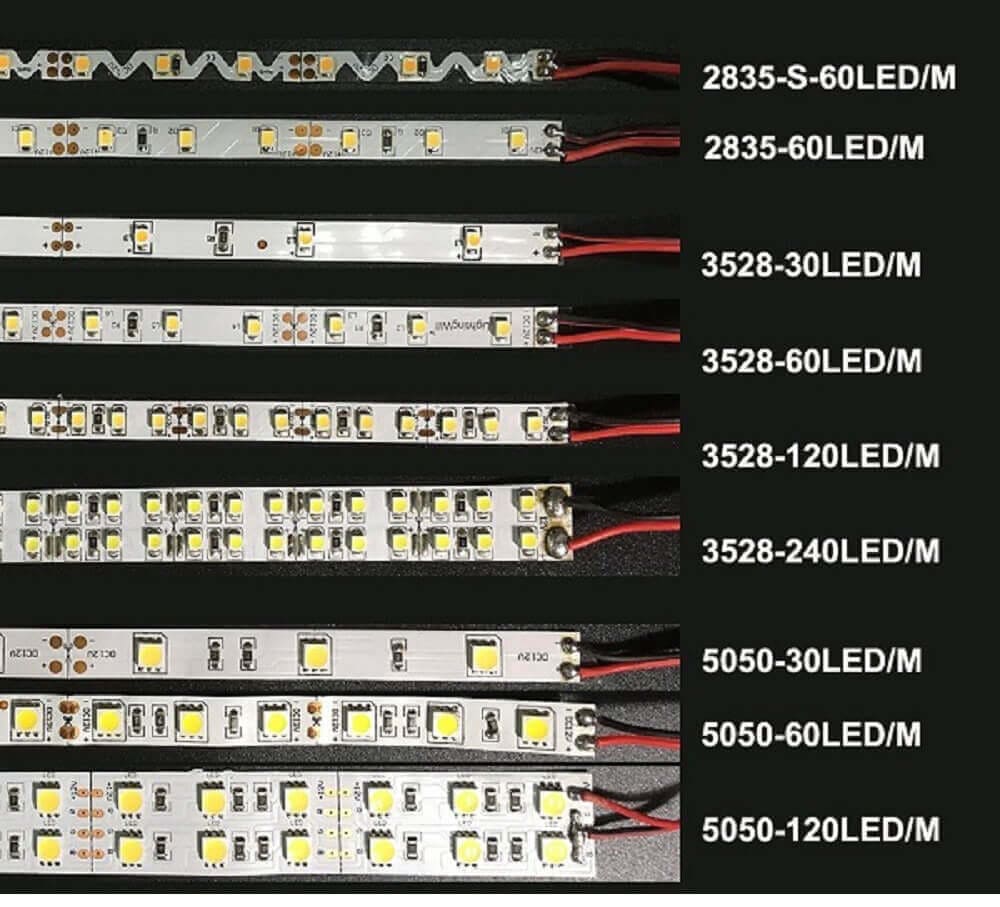

    Led Strip Types and Density

    s shape led strip 05



    Options for Accessories

    -Solderless connectors



    QQ截图20170830151155



    -Male and female plugs (2pins for single color, 4pins for RGB color changing)



    QQ截图20170901161546



    -Lock-in plug(2pins for single color, 4pins for RGB color changing)



    QQ截图20170901161640



    -AC to DC Transformer



    QQ截图20170830152538



    How to cut and mount the strip

    cut and mount strip



    Installation Guide

    -Direct Powered by Transformer no controller



    install





    one power and several powers



    -With controller or dimmer



    install 2

    joint more controllers

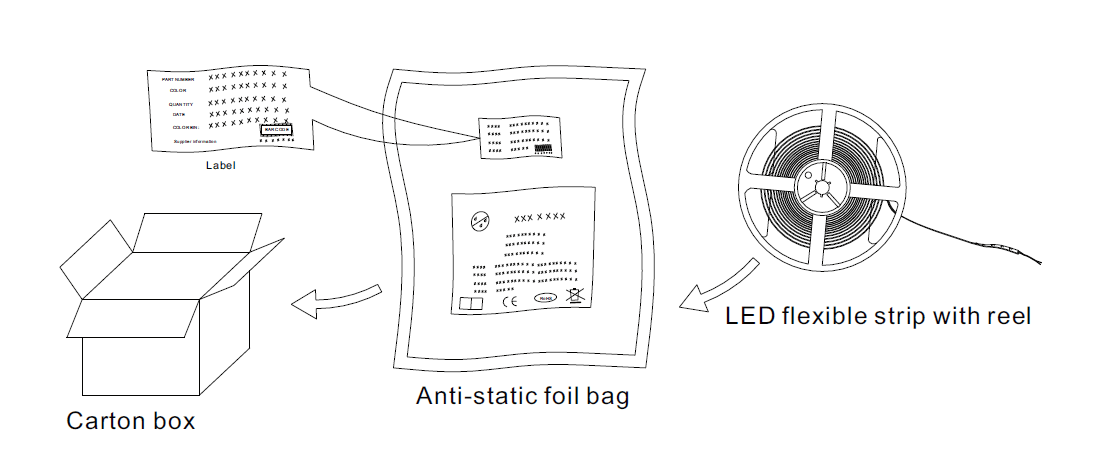

    Package

    PACKAGE

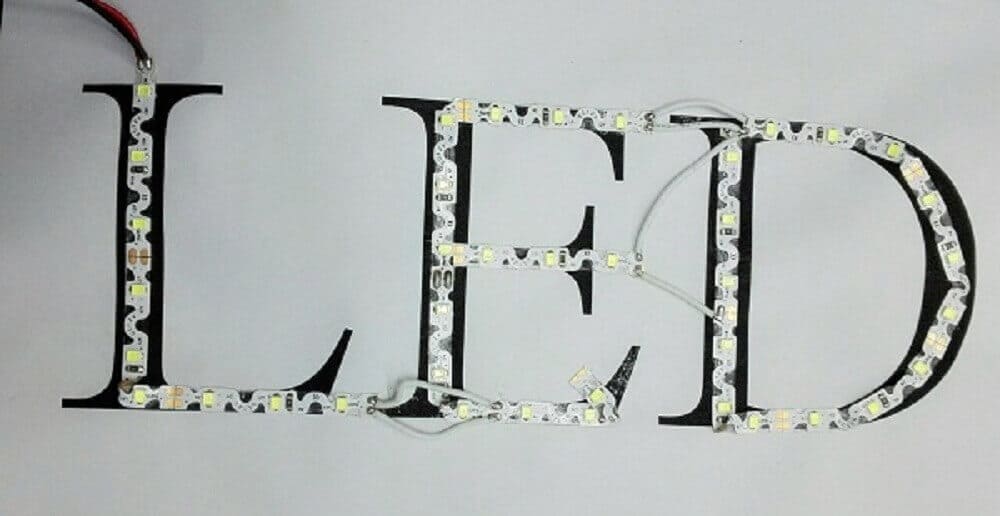

    Application

    • Cove lighting
    • Architectural lights for canopy,corridor,window,archway
    • Backlight or edge lighting for signage
    • DIY lights for home use
    • Path and contour marking
    • Decorative lights for holiday,event,show,axhibition
