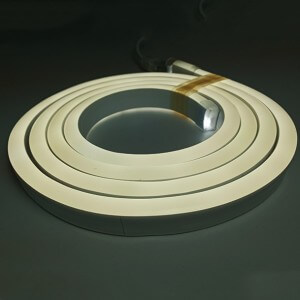

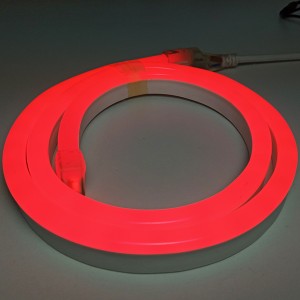

NF1120 Led Neon Flex – CE RoHS 3years

NF1120 Led Neon Flex – CE RoHS 3years

Short Description:

*Great for architectural lighting solution, outdoor decorative lighting solution
*Ideal Placement For Traditional NEON Light, Offer Generous And Rich Colors
*No Dark Spot And Consistent Color Throughout The Whole Rope Light
*Power Connector, Mounting Track, Mounting Clip, End Cap.for DIY project
*DC 24V/12V Anti-Electric Shock, safty for outdoor usage

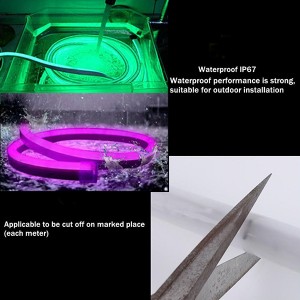

*UV and Yellowish Resistant,IP67 waterproof and Salt-mist proof

try it now!


  • FOB Price: US $0.5 - 10 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 100,000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    The LED NEON FLEX is a versatile and user-friendly lighting device; it can be cut and bent and formed in the field and easily installed on the flat surface of varied materials, such as wood, plastic, steel, or wall, etc. to form all kinds of pattern according to your design. And it can be easily connected to the power supply and then performs well.
    -It is recommended to mark centerlines or draw the outline of your pattern on the surface of your desired positions.
    -Secure mounting clips on the centerlines at appropriate intervals with screws, if there are curves; It is better to secure mounting clip on each curve and between.
    -Insert the light body into the mounting clips with the lighting parts upward.
    -Connect each part together.
    Parameters:
    LED Light Source SMD2835
    Light Type LED Neon Light
    Input Voltage(V) DC12V/24V
    Lamp Power 12W/M
    Lamp Luminous Flux(lm) 690lm/mtr
    CRI Ra>70
    Color White(3000K/4000K/6000K),Red,Green,Blue,Yellow
    Working Temperature(℃)  -20~50℃
    Working Lifetime(Hour) 50000Hrs
    Lamp Body Material PC
    Certification CE, EMC,LVD, RoHS
    Place of Origin Shenzhen,China
    Brand Name MSS LED or OEM
    Model Number NF1120A
    Product Name Flex LED Neon Light
    LED Quantity 120LED/M
    PCB Color White PCB
    IP Rating IP67
    Dimension W11*H20mm
    Drawing W11  neon size
    Warranty 3years
    Min cut 10cm
    Beam Angle 120 degree
    Length 10Meters/roll
    Application:
    LED neon letter or sign
    Building and sign outline lighting
    General and cove lighting
    Ships, boats and trucks outline lighting
    Bathroom, spa room lighting
    Applicable for automobile and bicycle decoration, border or contour lighting

    Why you choose Neon Flex from MSS LED:

    MSS LED NEON

    How to install neon flex:

    (below neon color only for reference, pls make the object as the standard)

    neon installation neon note

    What accessories you need for neon flex:

    accessories

    How you connect neon flex and cables:

    neon flex 2
