Short Description:

Constant Current Technology (CCT),30pcs per series
The exposed Aluminum plate for heat dissipation
Injection molding process,Waterproof: IP 67
Bigger chip,10% brighter than before
Energy saving,Environment friendly
Long life span
Suitable for channel letters and light boxes back lighting etc.

  • FOB Price: Negotiable
  • Min.Order Quantity:: 30pcs/ chain
  • Supply Ability:: 500000pcs per month
  • Loading Port:: Shenzhen,China
  • Payment Terms:: T/T,Paypal,Wester Union,MoneyGram,L/C
  • Product Detail

    Products Video

    Products Gallery

    Product Tags

    Best for 80-300 mm depth light boxes and channel letters, 3years warranty

    Features:
    Constant Current Technology (CCT),30pcs per series
    The exposed Aluminum plate for heat dissipation
    Injection molding process,Waterproof: IP 67
    Bigger chip,10% brighter than before
    Energy saving,Environment friendly
    Long life span
    Suitable for channel letters and light boxes back lighting etc.
    Parameters:
    Description Four SMD 2835 module ,30 pcs per chain,18-30CM signs
    IP 67
    Dimmension (mm) 36*36mm
    Voltage   (v) 12V
    Power (w) 1.2W
    Luminous Flux 104lm
    Carton Qty (pcs) 1080pcs
    Alibale Color Pure white/    Cool white/ Warm white
    Angle  (°) 160°
    Warranty 3 years warranty (8Hrs/day)
    Application:
    Channel letter lighting
    Commercial standing lighting
    Letter background lighting
    Light box lighting
    Logo lighting
    Line/shape lighting

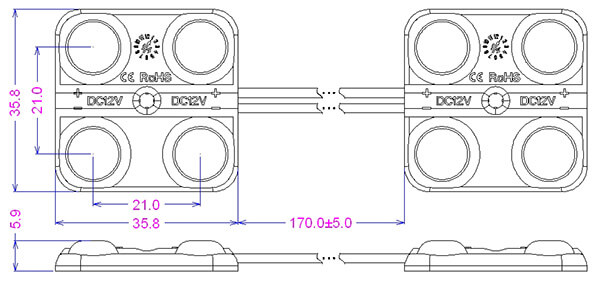

    Dimension

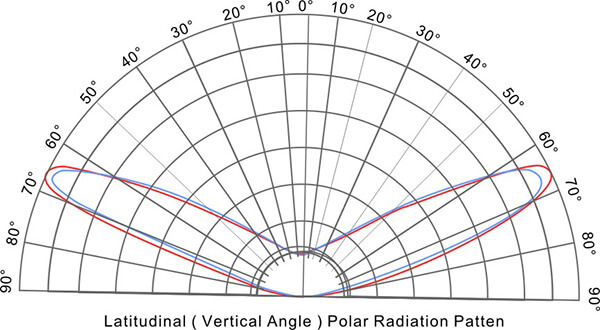

    Led module light distribution graph

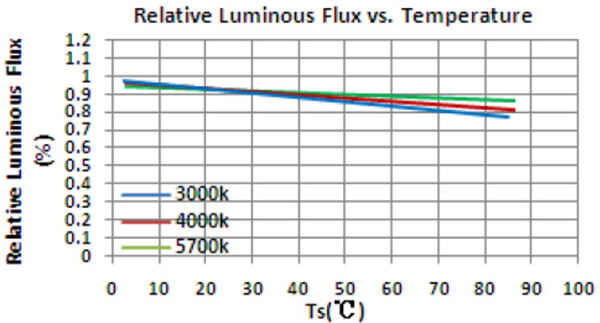

    Temperature and luminous flux


    Attention

    1. Max. number of modules of one chain is 30pcs from power supplier to single end.

    2. The given illuminance parameters ensure illuminance on the surface.

    3. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.

    4. More brightness is obtained if distances between LED modules are reduced.

    5. The LED module itself and all its components may not be mechanical stressed.

    6. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.

    7. The design of the housing should be according to the IP standards in the application.

    8. If surge protection structure not within power supplier, a lightening protector should be needed additionally.

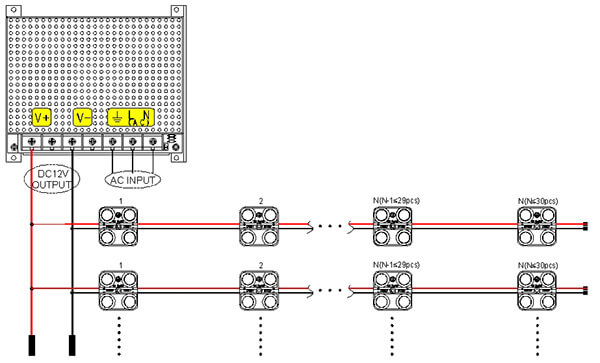

    Connect electrical diagram


    Packing

    PACKING

    Main application

    QQ截图20171103180735

    Aging testing

    QQ截图20171116181819
