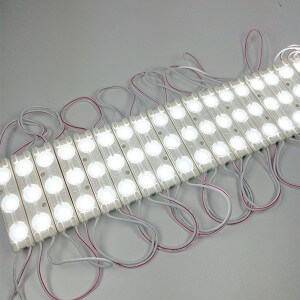

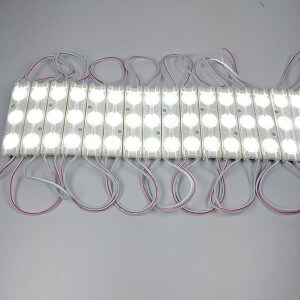

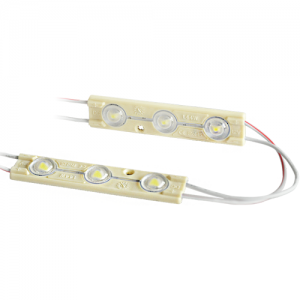

3leds 2835 Module – CE RoHS 3years
Short Description:
| Constant Current Technology (CCT)，40pcs per series | |
| The exposed Aluminum plate for heat dissipation | |
| Injection molding process，Waterproof: IP 67 | |
| Bigger chip，10% brighter than before | |
| Energy saving，Environment friendly | |
| 50,000hours Long life span | |
| Suitable for channel letters and light boxes back lighting etc. |
Product Detail
Products Video
Products Gallery
Product Tags
Best for 80-250 mm depth light boxes and channel letters, 3years warranty
| Features: | |
| Constant Current Technology (CCT)，40pcs per series | |
| The exposed Aluminum plate for heat dissipation | |
| Injection molding process，Waterproof: IP 67 | |
| Bigger chip，10% brighter than before | |
| Energy saving，Environment friendly | |
| Long life span | |
| Suitable for channel letters and light boxes back lighting etc. | |
| Parameters: | |
| Description | Three SMD 2835 module ,40 pcs per chain,over 8-25CM signs |
| IP | 67 |
| Dimmension (mm) | 63*15mm |
| Voltage (v) | 12V |
| Power (w) | 0.72W |
| Luminous Flux | 63lm |
| Carton Qty (pcs) | 2560pcs |
| Alibale Color | Pure white/ Cool white/ Warm white/ Red/ Yellow/ Green/ Blue |
| Angle (°) | 160° |
| Warranty | 3 years warranty (8Hrs/day) |
| Application: | |
| Channel letter lighting | |
| Commercial standing lighting | |
| Letter background lighting | |
| Light box lighting | |
| Logo lighting | |
| Line/shape lighting | |

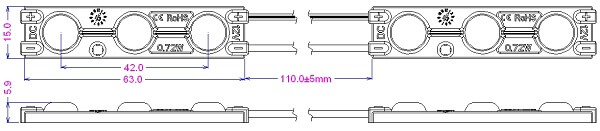

Dimension
Illuminance and distance table
| Box Depth | Module Pitch | Brightness | Modules/m2 | Power/m2 | |
| (cm) | (cm) | lux | nits | (pcs/㎡) | (W/㎡) |
| 6cm | 10*8 | 4300lux | 1500 | 130PCS | 93.6W |
| 8cm | 12*10 | 2500lux | 900 | 90PCS | 64.8W |
| 10cm | 15*12 | 1650lux | 800 | 63PCS | 45.36W |
| 12cm | 18*14 | 1100lux | 375 | 48PCS | 34.56W |
| 15cm | 22*17 | 800lux | 290 | 30PCS | 21.6W |

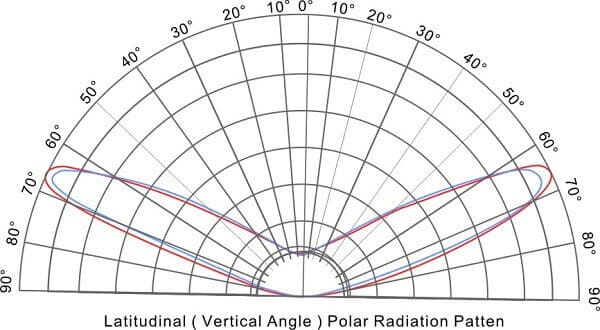

Led module light distribution graph

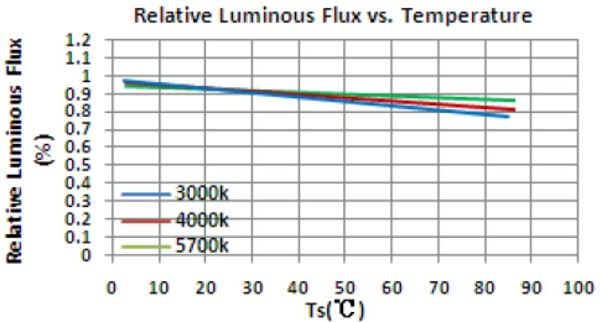

Temperature and luminous flux
Attention
1. Max. number of modules of one chain is 40pcs from power supplier to single end.
2. The given illuminance parameters ensure illuminance on the surface.
3. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.
4. More brightness is obtained if distances between LED modules are reduced.
5. The LED module itself and all its components may not be mechanical stressed.
6. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
7. The design of the housing should be according to the IP standards in the application.
8. If surge protection structure not within power supplier, a lightening protector should be needed additionally.

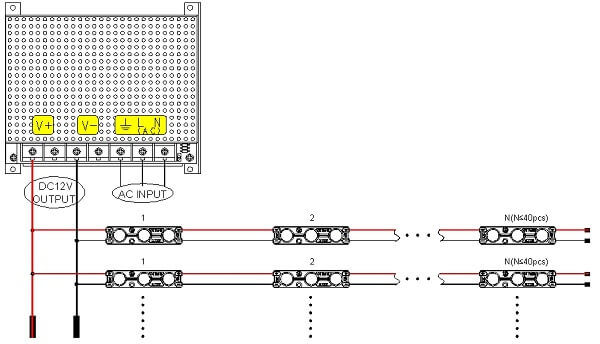

Connect electrical diagram
