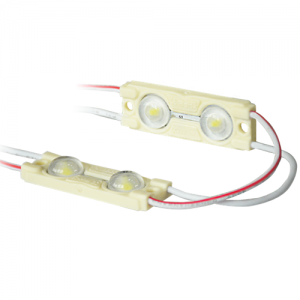

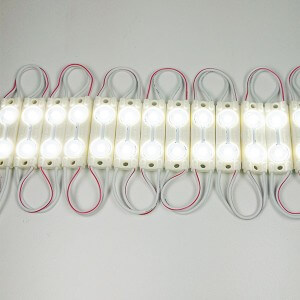

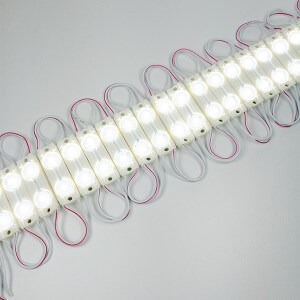

2leds 2835 Module – CE RoHS 3years

2leds 2835 Module – CE RoHS 3years

Short Description:

Constant Current Technology (CCT),50pcs per series
The exposed Aluminum plate for heat dissipation
Injection molding process,Waterproof: IP 67
Bigger chip,10% brighter than before
50,000hours Long life span
Suitable for channel letters and light boxes back lighting etc.










  • FOB Price: Negotiable
  • Min.Order Quantity:: 50pcs/ chain
  • Supply Ability:: 500000pcs per month
  • Loading Port:: Shenzhen,China
  • Payment Terms:: T/T,Paypal,Wester Union,MoneyGram,L/C
  • Product Detail

    Products Video

    Products Gallery

    Product Tags

    Best for 30-100 mm depth light boxes and channel letters, 3years warranty

    Features:
    Constant Current Technology (CCT),50pcs per series
    The exposed Aluminum plate for heat dissipation
    Injection molding process,Waterproof: IP 67
    Bigger chip,10% brighter than before
    Energy saving,Environment friendly
    Long life span
    Suitable for channel letters and light boxes back lighting etc.
    Parameters:
    Description Two SMD 2835 module ,50 pcs per chain,over 3-10CM signs
    IP 67
    Dimmension (mm) 40*15mm
    Voltage   (v) 12V
    Power (w) 0.48W
    Luminous Flux 46lm
    Carton Qty (pcs) 3200pcs
    Alibale Color Pure white/    Cool white/ Warm white
    Angle  (°) 160°
    Warranty  3 years warranty (8Hrs/day)
    Application:
    Channel letter lighting
    Commercial standing lighting
    Letter background lighting
    Light box lighting
    Logo lighting
    Line/shape lighting

    Dimensions

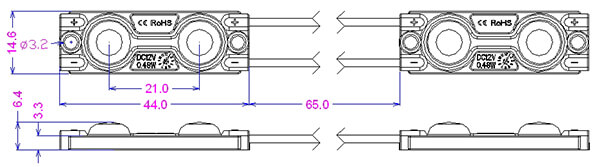

    324B dimension

    Illuminance and distance table

    Box size Illuminance Distance between Distance Qty/㎡ Power Per ㎡
    (cm) (lux) Modules centers(mm) Between rows (mm) (pcs/㎡) (W/㎡)
    100×100×3 11000~12000 60 40 400 200
    100×100×4 4000~5000 80 50 260 130
    100×100×6 2000~2500 120 80 96 46
    100×100×8 800~1000 160 110 54 27
    100×100×10 500~600 200 150 30 15

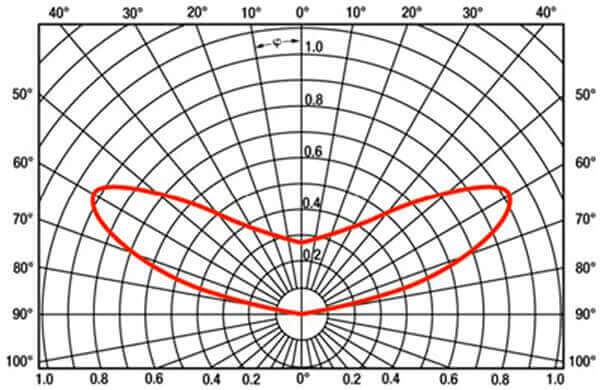

    Led module light distribution graph

    light dis

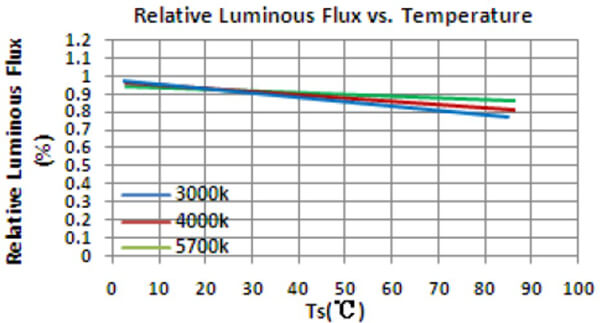

    Temperature and luminous flux

    temperature

    Attention

    1. Max. number of modules of one chain is 40pcs from power supplier to single end.

    2. The given illuminance parameters ensure illuminance on the surface.

    3. Depending on the type of material used for channel letters or lighting boxed,the parameters can change.

    4. More brightness is obtained if distances between LED modules are reduced.

    5. The LED module itself and all its components may not be mechanical stressed.

    6. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.

    7. The design of the housing should be according to the IP standards in the application.

    8. If surge protection structure not within power supplier, a lightening protector should be needed additionally.

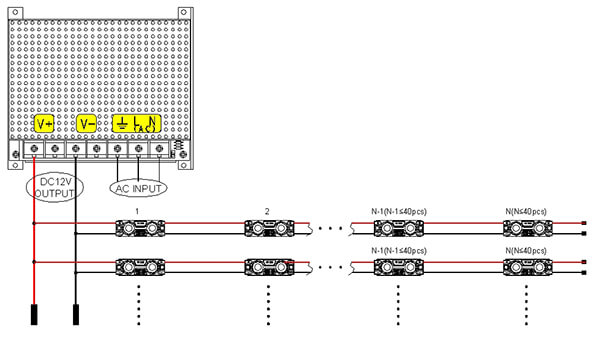

    Connect electrical diagram

    CONNECT

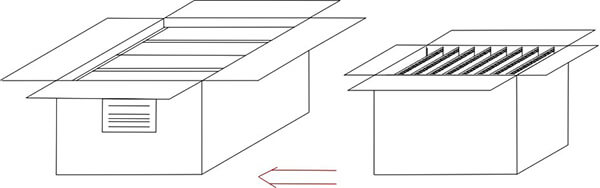

    Packing

    PACKING

    Main application

    QQ截图20171103180735

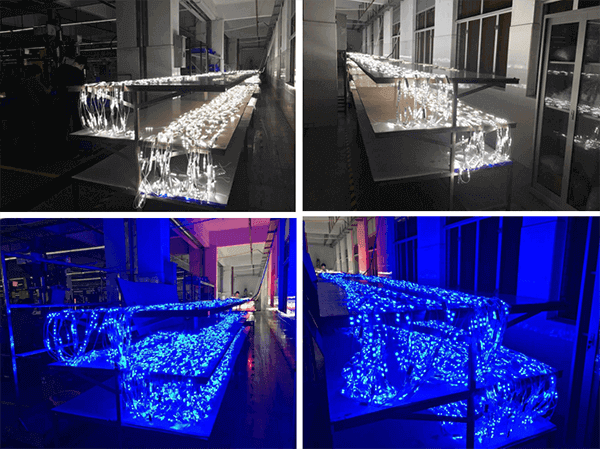

    Aging testing
